Kit Includes
Tacoma (Remastered) DSP Amplifier Specs:
- Class GD Amplifier Topology
- Optical Digital Input
- Power Rating: 570W RMS @ 4 ohms, THD 0.03%
- Frequency Response: 10 Hz to 22 kHz
- Signal-to-Noise Ratio: 104dB (A-weighted)
- Damping Factor – >100
- 64-bit Digital Signal Processing
- Burr Brown Analog-to-Digital & Digital-to-Analog Converters
- Operating Voltage: 10.5 – 18V (max. 5 seconds down to 6V for start/stop systems)
- DC 12V – 40A Max Consumption
- Warranty: 3 years from date of purchase
- Made in Germany – Perfected in the USA
– Dimensions:
- 46mm x 130mm x 153mm
- 1.81” x 5.12” x 6.02”
- – 18g Mild Steel Mounting Panel
Digital Interface Details
- 100% Plug & Play connectivity
- Allows for a full digital transmission of the analog 2-channel signals from the factory audio module to our Element 710 DSP amplifier
- Optical signal transfer using a Toslink cable ensures the best quality audio.
Integration Wiring Harness
- Specifically designed to plug & play to the 28P Factory Amplifier connector
- EIA specification wire color coding
- 18g Copper Wire
- 10g Battery Cable
- 10g Ground Cable
- O.E. Spec Fuse Holder w/ 40A ATC Fuse
Proprietary Orella Acoustics Calibration
- Vehicle-Specific Sound Quality Engineering
- Allows for seamless integration between the factory JBL speakers and our DSP amplifier delivering unbridled sound performance and reliability.
2024+ Tacoma Amplifier System
Copyright 2026 Orella Acoustics. All rights reserved. | Terms & Conditions | Return Policy | Privacy Policy
2024+ Tacoma Double Cab

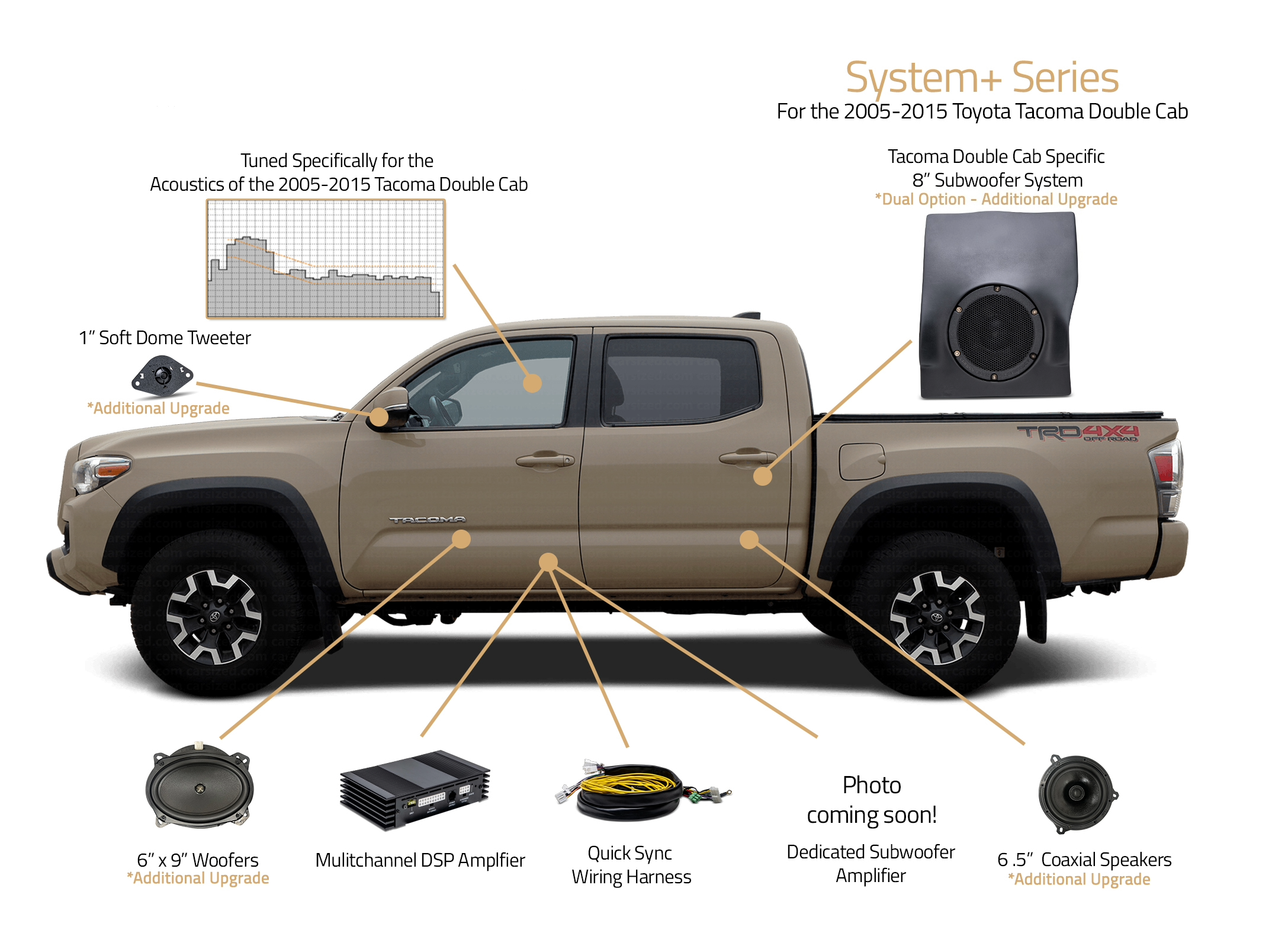

The System+ Series transforms your ’05-15 Toyota Tacoma Double Cab into a finely tuned concert hall, providing unparalleled clarity and loudness. Delivering ever-present bass without impeding vocals.
